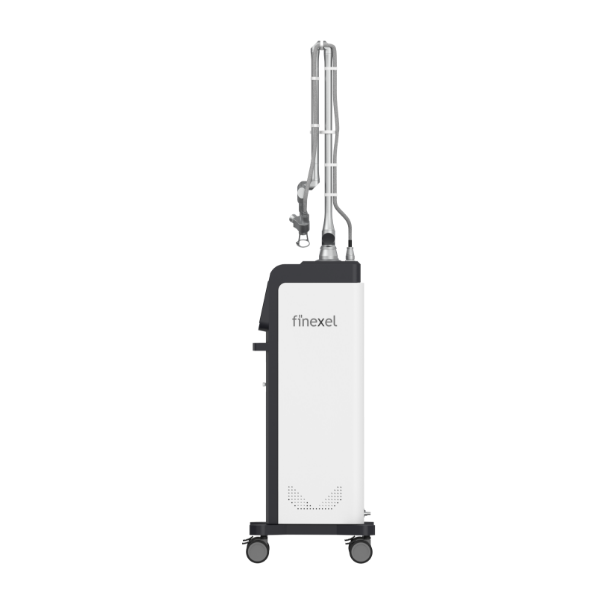

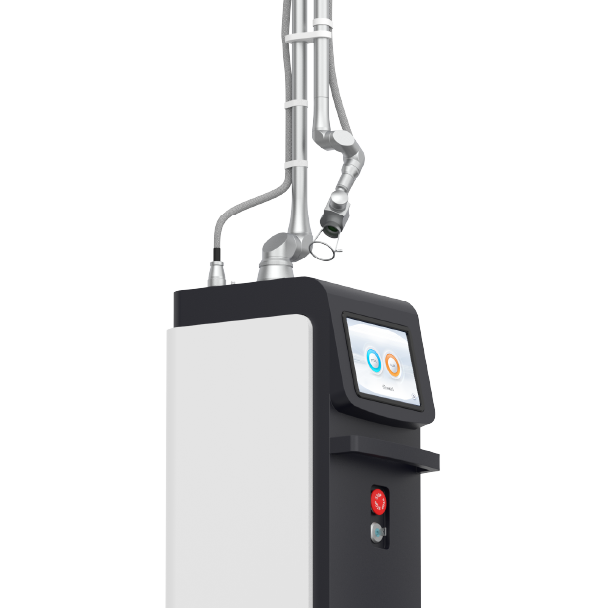

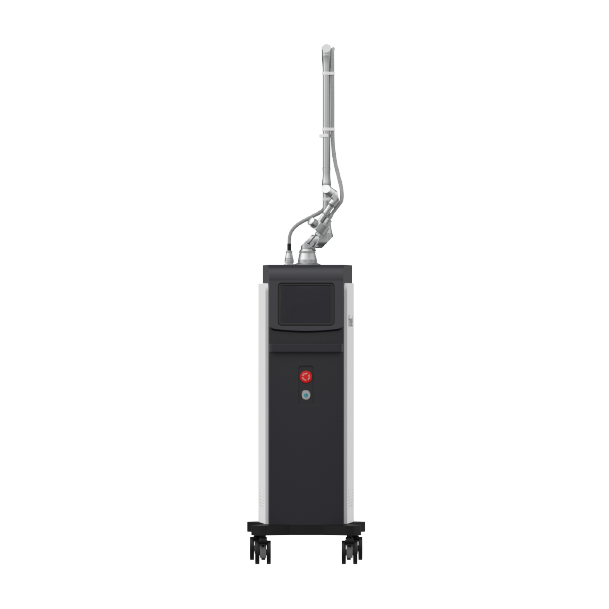

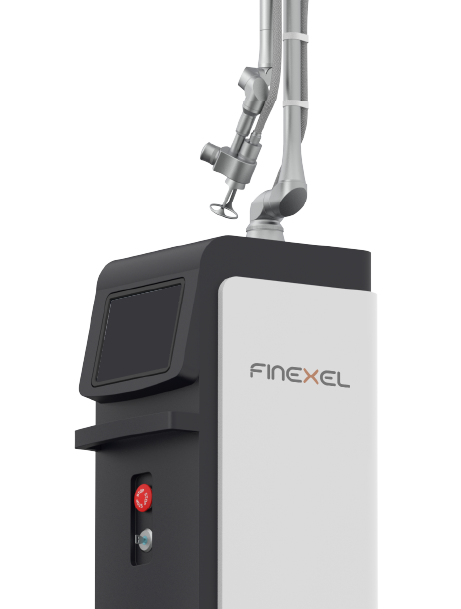

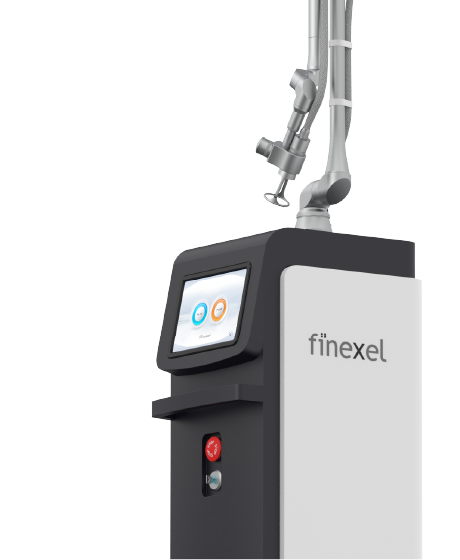

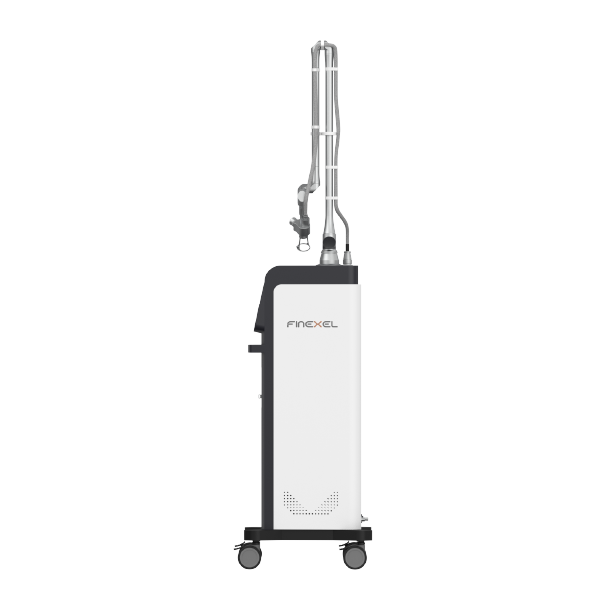

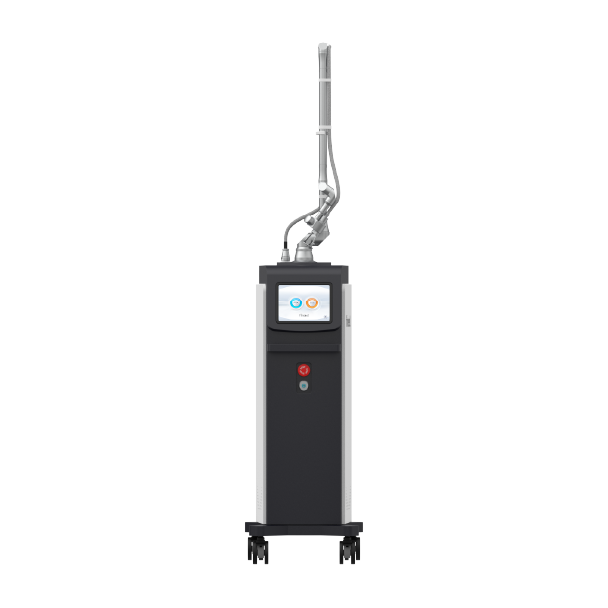

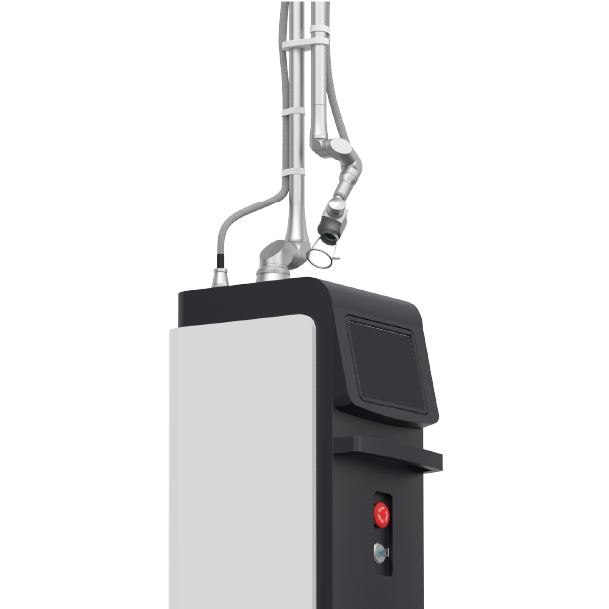

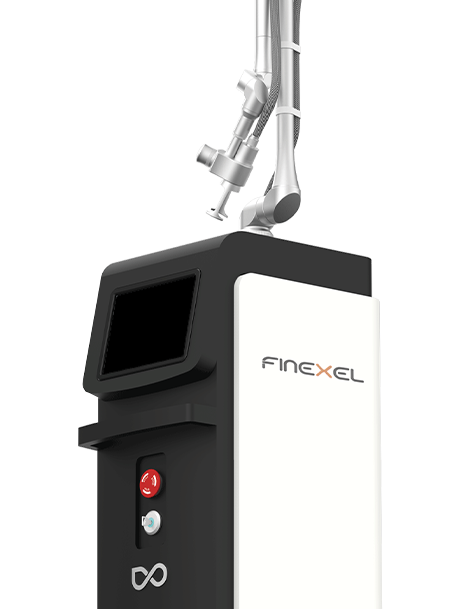

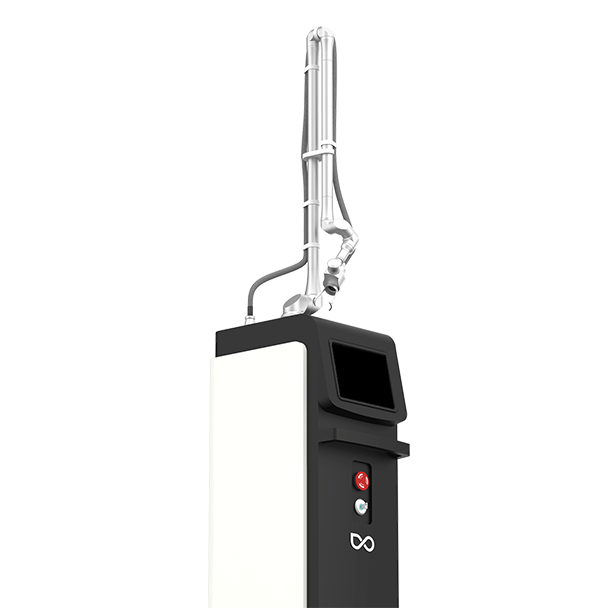

All-in-One CO2 Laser

· Advanced Pulse Technology
· High Peak Power
· Compact Design

co2-surgical-fractional-laser

Remarkable Fractional
CO2 Performance

co2-surgical-fractional-laser
co2-surgical-fractional-laser
co2-surgical-fractional-laser
Catalog Request
co2-surgical-fractional-laser
co2-surgical-fractional-laser

Uniform Spot Size

Guarantees consistent output with a high-quality pulse via an excellent combination of hardware such as the power board, high voltage transformer, and laser tube

Stable and Accurate Beam Pattern

Enhances patient comfort during treatment mitigates pain shortens down time and reduces thermal damage on adjacent tissues

Reliable Preset Program

Long-term tests conducted with serveral key doctors suggest optimized parameters for safe treatment and outstanding results

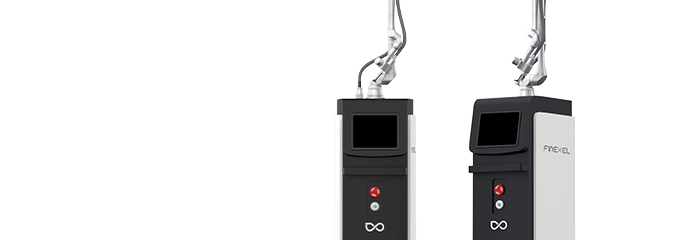

Platform mode with what you need

Select the version based upon your medical field

CO2

Surgical

FRX

Fractional

Mode

co2-surgical-fractional-laser-FRXmode

Scanning Shape

Square

co2-surgical-fractional-laser-FRXmode-scanningShape

Rectangle

co2-surgical-fractional-laser-FRXmode-scanningShape

Triangle

co2-surgical-fractional-laser-FRXmode-scanningShape

Circle

Scanning Pattern
co2-surgical-fractional-laser-FRXmode-scanningPattern

Standard

co2-surgical-fractional-laser-FRXmode-scanningPattern

Alternate

co2-surgical-fractional-laser-FRXmode-scanningPattern

Random

co2-surgical-fractional-laser-FRXmode-scanningPattern

Scatter

co2-surgical-fractional-laser-CO2mode

Fractional Technology

It deliveries more focused out by a maximum of 40,000 dots in a single shot, surpassing the capabilities of other systems

Min. 100 μm

With uniform beam size

Max. 40,000 dots

deliver in a single shot

Lessen residual thermal damage for deep layer focusing with Max. 10 stacking.
It promotes very rapid healing and lower pain rate so you can sooner expect an optimal effect than others.

co2-surgical-fractional-laser
co2-surgical-fractional-laser-stacking

Max. 10 Stacking

for deep layer focusing

co2-surgical-fractional-laser-stacking

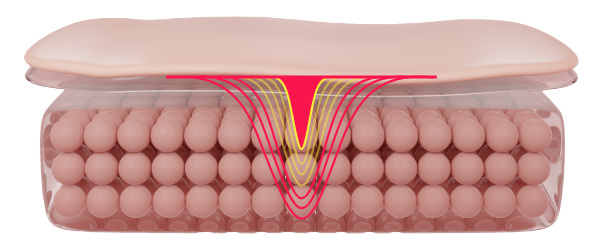

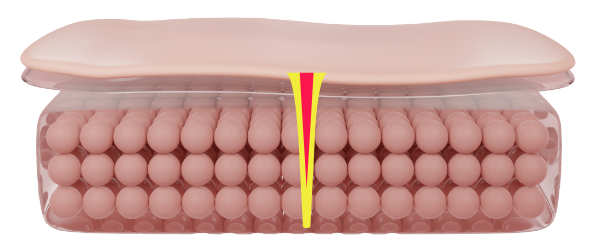

Lessen residual thermal damage

Shorter Down Time, Less Pain

co2-surgical-fractional-laser-thermalDamage

Other

co2-surgical-fractional-laser-thermalDamage
co2-surgical-fractional-laser-thermalDamage

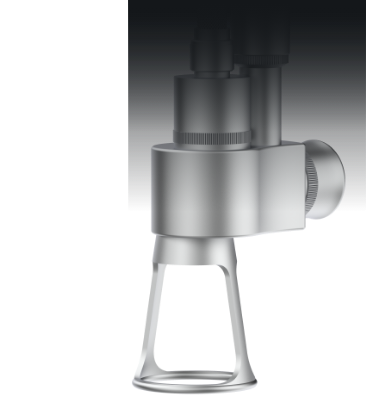

Finexel

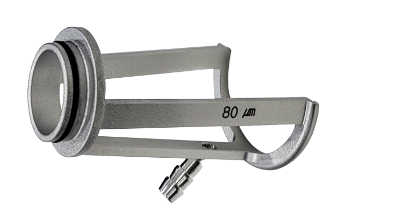

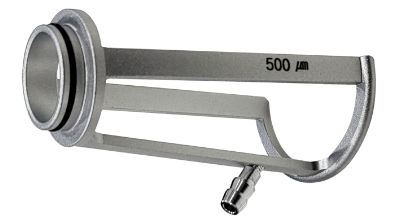

Handpiece

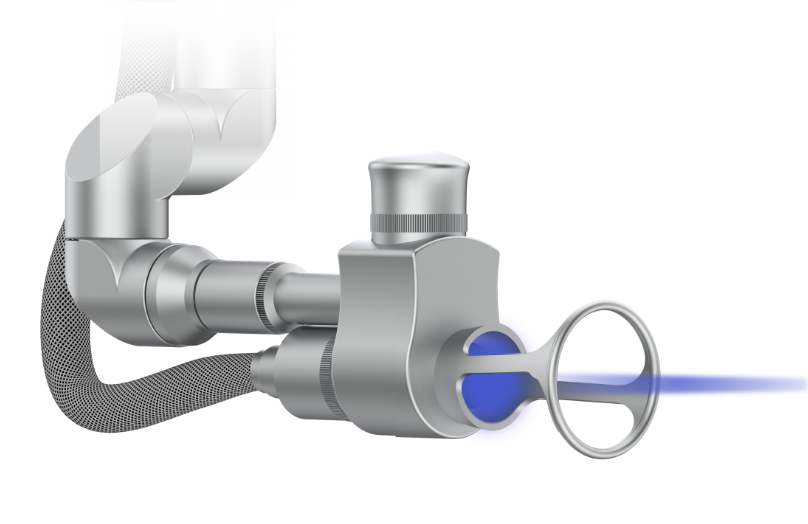

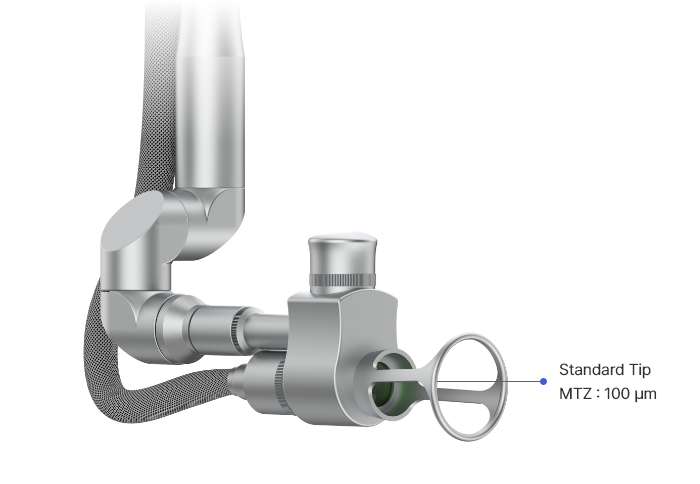

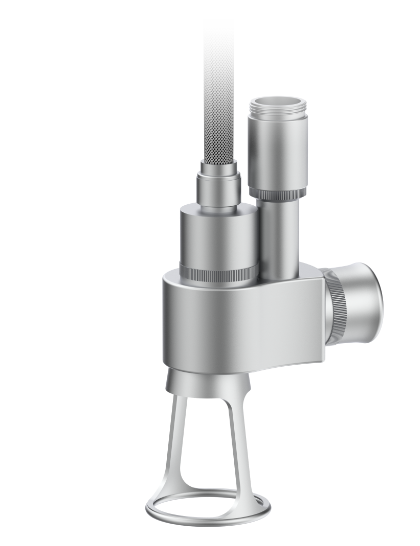

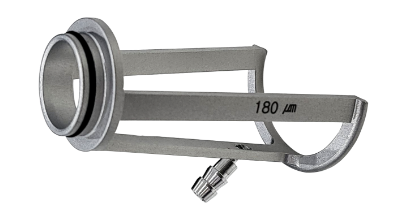

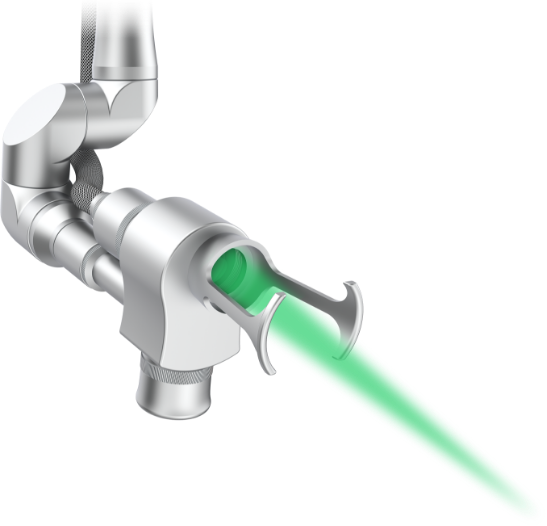

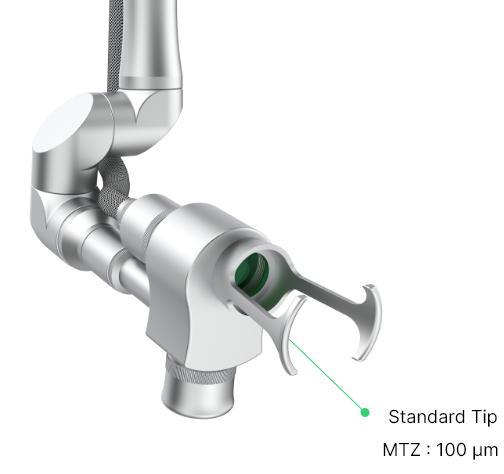

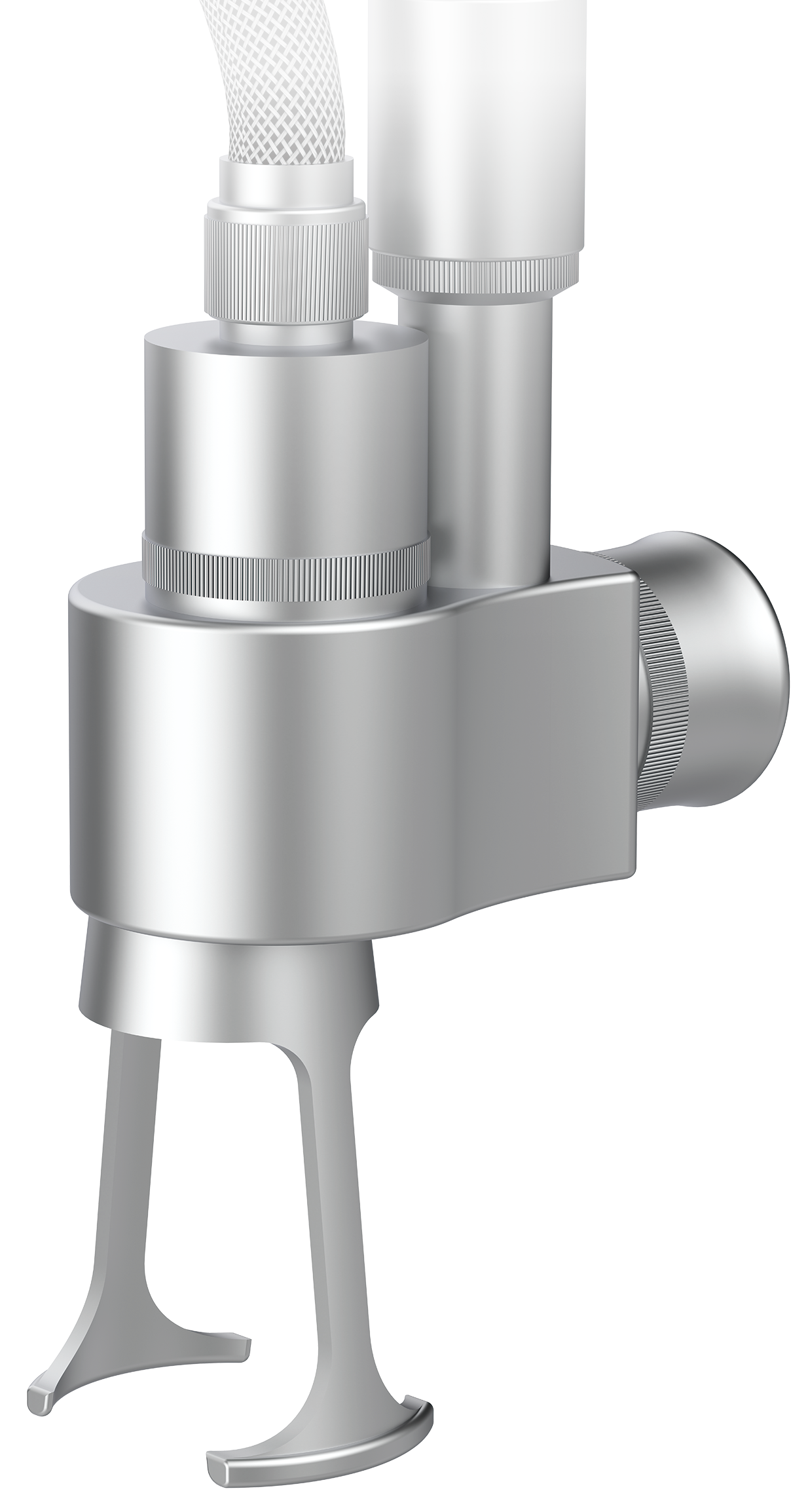

Fractional Handpiece

co2-surgical-fractional-laser-handpiece

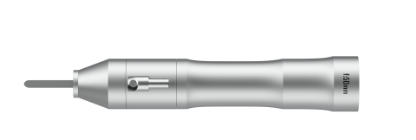

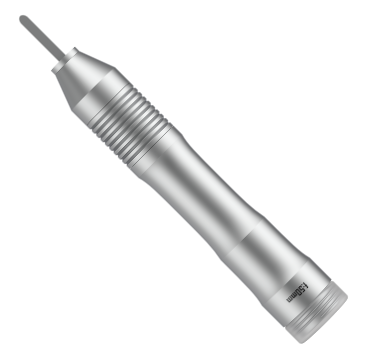

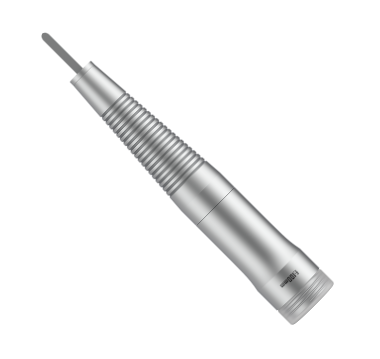

Surgical Handpiece

co2-surgical-fractional-laser-handpiece

F-50 mm

  • Spot size : 0.25 mm
co2-surgical-fractional-laser-handpiece

F-100 mm

  • Spot size : 0.5 mm

Indication

Optimal results for all indications

Dermatology, Plastic Surgery, General Surgery, Podiatry

Surgical

mole-ageSpot-syringoma-verrucaPlana-incision
mole-ageSpot-syringoma-verrucaPlana-excision
mole-ageSpot-syringoma-verrucaPlana-vaporization
mole-ageSpot-syringoma-verrucaPlana-coagulation

Fractional

drugDelivery-acneScar-brightening-skinresurfacing-skinRejuvenation

Before & After

co2-surgical-fractional-laser-fingerWartco2-surgical-fractional-laser-fingerWart
co2-surgical-fractional-laser-CongenitalMelanocyticNevusco2-surgical-fractional-laser-CongenitalMelanocyticNevus
co2-surgical-fractional-laser-miliumco2-surgical-fractional-laser-milium
co2-surgical-fractional-laser-acneScarco2-surgical-fractional-laser-acneScar
co2-surgical-fractional-laser-ageSpotco2-surgical-fractional-laser-ageSpot
co2-surgical-fractional-laser-poreTighteningco2-surgical-fractional-laser-poreTightening

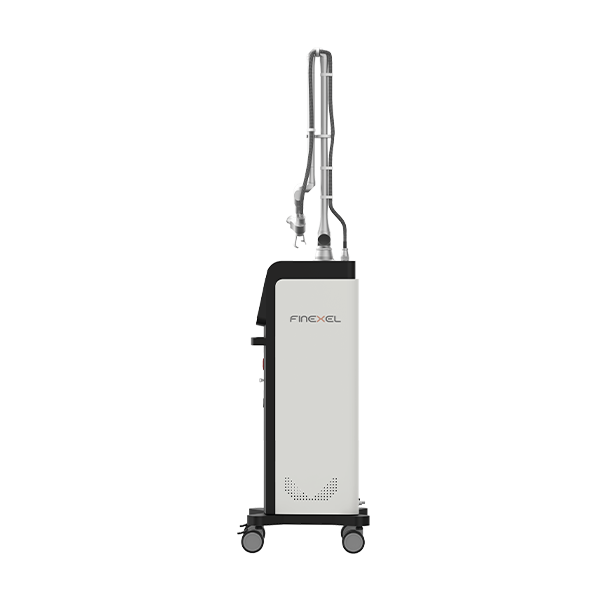

Product Specification

System Fractional CO2 Laser
Mode FRX (Fractional) / CO2 (Surgical)
Wavelength 10600 nm
Power (CO2) 30 W
Energy (FRX) 5 ~ 300 mJ
Pulse Frequency 1 ~ 990 Hz
Pulse Duration 50 ~ 2000 us
Electrical 110-120, 220-240VAC, 50/60Hz
Dimension 350(W) x 400(L) x 1000(H) mm
Weight 50 kg
